YZG12.8 Mining Handheld Borehole Trajectory Instrument

YZG12.8 Mining Handheld Borehole Trajectory Instrument

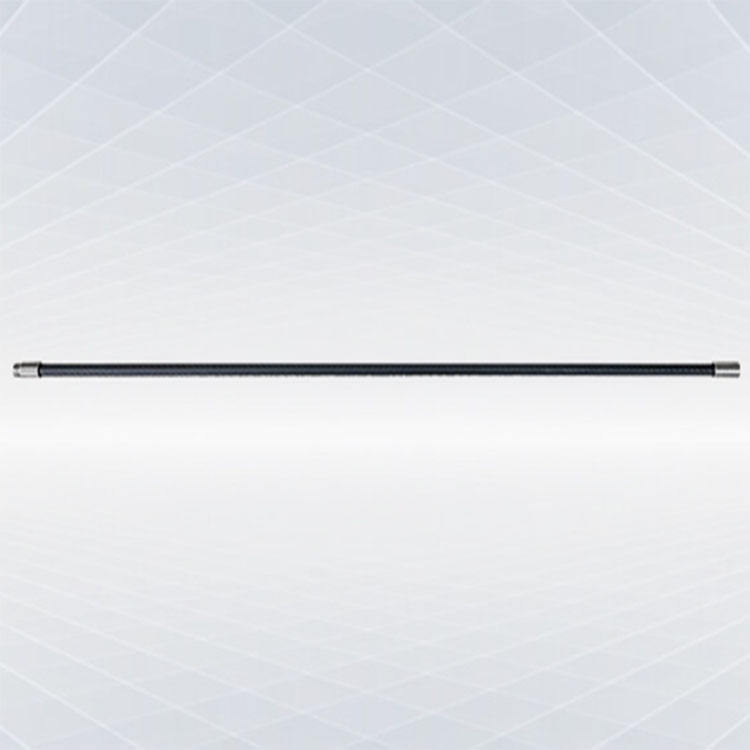

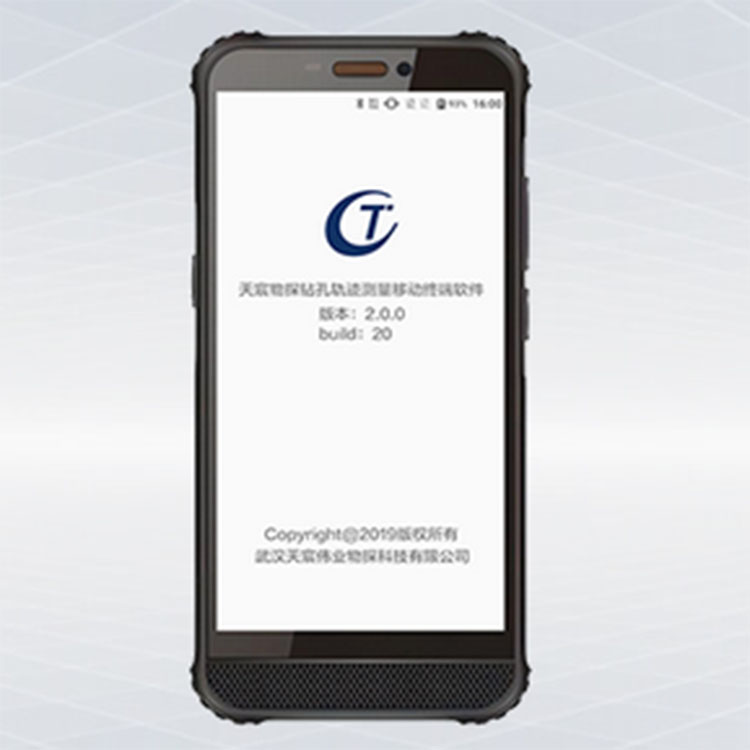

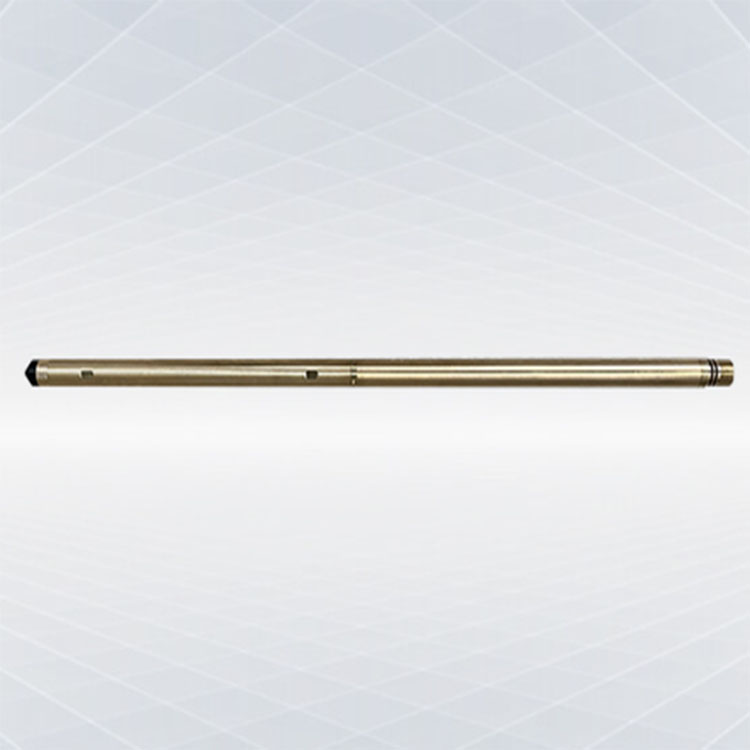

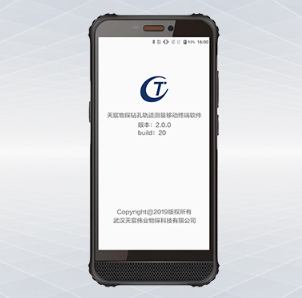

The YZG12.8 Mining Handheld Borehole Trajectory Instrument is an intelligent borehole trajectory detection device. The instrument mainly consists of a mining intrinsically safe handheld borehole trajectory instrument probe, a mining smartphone, a carbon fiber push rod, and other components. During measurement, the mining intrinsically safe handheld borehole trajectory instrument probe is connected to the carbon fiber push rod and manually pushed into the borehole to measure the spatial trajectory and drilling depth of the borehole. It communicates with the mining smartphone via wireless Bluetooth. When each borehole starts drilling, the attribute information of that borehole is entered, and after measurement is completed, the data stored in the probe memory is transmitted to the phone, and the spatial trajectory and depth of the borehole are displayed on site through the mobile terminal software.
